PURPOSE OF THE ECAM

PURPOSE OF THE ECAM

The Electronic Centralized Aircraft Monitoring (ECAM) system
is a main component of Airbus’ two-crewmember cockpit,
which also takes the "dark cockpit" and "forward-facing crew"
philosophiesinto account.

The purpose of the ECAM is to:

• Display aircraft system information
• Monitor aircraft systems
• Indicate required flight crew actions, in most normal, abnormal and emergency situations.

As the ECAM is available in most failure situations,
it is a significant step in the direction towards a
paperless cockpit and the reduction of memory items.

MAIN PRINCIPLES

Applicable to: ALL
INFORMATION PROVIDED WHEN NEEDED

One of the main advantages of the ECAM is that it displays applicable information to the flight
crew, on an "as needed" basis.

The following outlines the ECAM’s operating modes:

• Normal Mode:
Automatically displays systems and memos, in accordance with the flight phase.
• Failure Mode:
Automatically displays the appropriate emergency/abnormal procedures, in addition to their
associated system synoptic.

• Advisory Mode:
Automatically displays the appropriate system synoptic, associated with a drifting parameter.

• Manual Mode:
Enables the flight crew to manually select any system synoptic
via the ECAM Control Panel(ECP).

Most warnings and cautions are inhibited during critical phases of flight
(T/O INHIBIT – LDGINHIBIT), because most system failures will not affect
the aircraft’s ability to continue a takeoff or landing.

FAILURE LEVELS

The ECAM has three levels of warnings and cautions. Each level is based on the associated
operational consequence(s) of the failure. Failures will appear in a specific color,
according to a defined color-coding system,
that advises the flight crew of the urgency of a situation in an
instinctive, unambiguous manner.

In addition, Level 2 and 3 failures are accompanied by a specific
aural warning: A Continuous Repetitive Chime (CRC) indicates a Level 3 failure, and a Single
Chime (SC) indicates a Level 2 failure.


LVL 3 Priority: Safety ||Color Code: Red ||Aural Warning: CRC ||
Crew Act: Immediate

LVL 2 Priority: Abnormal ||Color Code: Amber ||Aural Warning: SC ||
Crew Act: Awareness, then action

LVL 1 Priority: Degradation||Color Code: Amber ||Aural Warning: None ||
Crew Act: Awareness, then Monitor

When there are several failures, the FWC displays them on the Engine Warning Display (E/WD) in
an order of priority, determined by the severity of the operational consequences.
This ensures that the flight crew sees the most important failures first.

FEEDBACK

The ECAM provides the flight crew with feedback, after action is taken on affected controls:

• The System Synoptic:
Displays the status change of affected components.

• The Memo:
Displays the status of a number of systems selected by the flight crew (e.g. anti ice).

• The Procedures:
When the flight crew performs a required action on the cockpit panel, the ECAM usually clears
the applicable line of the checklist (except for some systems or actions, for which feedback is
not available).

The ECAM reacts to both failures and pilot action.

ECAM HANDLING

Applicable to: ALL

Task sharing is essential to effective ECAM operation, particularly in the case of abnormal
operations.

NORMAL OPERATIONS

On ground, the ECAM MEMO is reviewed for feedback on temporarily-selected items
(e.g. SEATBELTS/IGNITION/ENG A/I), and to check whether IRs are aligned.
If alignment is not complete,the time remaining will be displayed.
It is, therefore, not necessary to refer to the OVHD panel.

In cruise, the main systems should periodically be reviewed during flight
(ENG, BLEED, ELEC, AC/DC, HYD, FUEL, F/CTL),
to ensure that they are operating normally, and to detect any
potential problem in advance.

The ECAM MEMO must be included in the instrument review.
In cruise, in most of the cases, it should be blank.
It helps to make the flight crew aware of any system that a flight crewmember
temporarily selected, but forgot to deselect.

A STS label, displayed at the bottom of the E/WD, indicates that there is a STATUS to be
reviewed.

Therefore, when a C/L calls for STATUS review, press STS, only if the label appears.

If there is a STS at engine shutdown, it will pulse at the bottom of the E/WD.

If this is the case, the STATUS page should be reviewed for help in completing the technical log.


ECAM ADVISORY

The flight crewmember that first notices an advisory announces: "ADVISORY on XYZ system".

Then, the PF requests the PNF to review the drifting parameter.
If time permits, the PNF may refer to the QRH non normal procedures section,
containing recommended actions in various advisory situations.

1 ABNORMAL OPERATIONS

TASK SHARING RULES

When the ECAM displays a warning or a caution, the first priority is to ensure that a safe flight
path is maintained.

The successful outcome of any ECAM procedure depends on:

Correct reading and application of the procedure, effective task sharing,
and conscious monitoring and crosschecking.

It is important to remember that, after ECAM ACTIONS announcement by the PF:

• The PF’s task is to fly the aircraft, navigate, and communicate.
• The PNF’s task is to manage the failure, on PF command.

The PF usually remains the PF for the entire flight, unless the Captain decides to take control.

The PF will then control the aircraft’s flight path, speed, configuration, and engines.

The PF will also manage navigation and communication,
and initiate the ECAM actions to be performed by
the PNF, and check that the actions are completed correctly.

The PNF has a considerable workload: Managing ECAM actions and assisting the PF on
request.
The PNF reads the ECAM and checklist, performs ECAM actions on PF command,
requests PF confirmation to clear actions, and performs actions required by the PF.

The PNF never touches the thrust levers, even if requested by the ECAM.

Some selectors or pushbuttons (including the ENG MASTER switch, FIRE pushbutton, IR, IDG
and, in general, all guarded switches) must be crosschecked by both the PF and PNF,
before they are moved or selected, to prevent the flight crew from
inadvertently performing irreversible actions.

As a general rule, any computer reset must be
also crosschecked by both the PF and PNF.

To avoid mistakes in identifying the switches, Airbus’ overhead panels
are designed to be uncluttered.

When the ECAM requires action on overhead panel pushbuttons or switches,
the correct system panel can be identified by referring
to the white name of the system on the side of each panel.

Before performing any action, the PNF should keep this sequence in mind:

"System, then procedure/selector, then action" (e.g. "air, crossbleed, close").

This approach, and announcing an intended selection before action,
enables the PNF to keep the PF aware of the progress of the procedure.

It is important to remember that, if a system fails,
the associated FAULT light on the system pushbutton
(located on the overhead panel) will come on in amber,
and enable correct identification.

When selecting a system switch or pushbutton,
the PNF should check the SD to verify that the
selected action has occurred
(e.g. closing the crossbleed valve should
change the indications that appear on the SD).

Crew Coordination



1. The PNF should review the overhead panel and/or associated SD to analyze and confirm the
failure, prior to taking any action, and should bear in mind that the sensors used for the SD
may be different from the sensors that trigger the failure.

2. In case of a failure during takeoff or go-around, ECAM actions should be delayed until
the aircraft reaches approximately 400 ft, and is stabilized on a safe trajectory.
This is an appropriate compromise between stabilizing the aircraft and delaying action.

3. When the ECAM displays several failures, the sequence (action, then request and
confirmation, before clearance) should be repeated for each failure.
When all necessary actions are completed, amber messages
and red titles will no longer appear on the E/WD.

4. When the ECAM displays several system pages, the sequence
(request and confirmation before clearance) should be repeated for each system page.

5. The PF may call out "STOP ECAM" at any time, if other specific actions must be performed
(normal C/L, or performing a computer reset).
When the action is completed, the PF must callout: "CONTINUE ECAM".

6. When slats are extended, the SD automatically displays the STATUS, unless if the page is
empty.
The STS should be carefully reviewed, and the required procedure applied.

7. When ECAM actions have been completed, and the ECAM status has been reviewed,
the PNF may refer to the FCOM procedure for supplementary information, if time permits.

However, in critical situations the flight should not be prolonged only to consult the FCOM.

IF THE ECAM WARNING (OR CAUTION) DISAPPEARS WHILE APPLYING THE PROCEDURE

If an ECAM warning disappears, while a procedure is being applied, the warning can be
considered no longer applicable.

Application of the procedure can be stopped.

For example, during the application of an engine fire procedure, if the fire is successfully
extinguished with the first fire extinguisher bottle, the ENG FIRE warning disappears, and the
procedure no longer applies.

Any remaining ECAM procedures should be performed as usual.

SOME ADDITIONAL REMARKS

• There are very few memory items:

‐ Immediate actions of EMER DESCENT
‐ Immediate actions, in case of an unreliable speed indication
‐ Loss of braking
‐ Windshear (reactive and predictive)
‐ EGPWS and GPWS
‐ TCAS
‐ Stall recovery and stall warning at lift-off.

• LAND ASAP (As Soon As Possible):

‐ RED LAND ASAP :
Land as soon as possible at the nearest suitable airport
at which a safe approach and landing can be made.

‐ AMBER LAND ASAP:

Advice to the flight crew to consider landing at the nearest suitable airport.

Note:

The CLOSEST AIRPORTS MCDU page may help the flight crew
to determine the nearest suitable airport:

This page displays the four airports that are the nearest to
the aircraft's current position.

These airports are found in the navigation database,
and are displayed regardless of their suitability.

The flight crew should keep in mind that the four closest airports
are sorted according to distance, and should refer to
the Estimated Time of Arrival (ETA).

• OEB Reminder

Some Operational Engineering Bulletins (OEBs)
contain information that may impact flight
crew action, in the event of a system failure.
OEBs are filed in the QRH.
If the OEB reminder function is activated for an ECAM warning/caution,
the ECAM will display the : "Refer to QRH Proc" line, when necessary.
This line may appear instead of the procedure,
or it may be added to the ECAM STATUS.

In such failure cases, the flight crew should refer to
the applicable procedure in the QRH.

• Some procedures require reference to the QRH

IN CASE OF AN ECAM SYSTEM FAULT DISPLAY UNIT FAILURE

If one ECAM screen fails, the remaining one will display the E/WD.

However, in such a case, if a failure or advisory occurs,
the system or status page are not displayed automatically.

The PNF can display a system synoptic on the remaining display unit,
by pressing the assigned system pushbutton on the ECP.
The synoptic will appear, as long as the pushbutton is pressed.

Therefore, in the case of an advisory and/or failure
(indicated by an ADV flag that pulses in white on the bottom of the E/WD),
the PNF must call up the affected system synoptic, by
pressing the related pushbutton.

To review two or three pages of status messages:

The PNF should release the STS pushbutton
for less than two seconds, then press and hold it again.

A double ECAM screen configuration can be recovered
using the ECAM/ND switching selector:

• If the Captain is the PNF, the switch should be set to "CPT".
• If the First Officer is the PNF, the switch should be set to "F/O".

The applicable ND screen will then display the second ECAM image.

DMC FAILURES

In case all of the ECAM DMC channels fail, each flight crewmember
may display the engine standby page on their respective ND
(generated by the DMCs’ EFIS channel).

ECP FAILURE

In the case of an ECP failure, the CLR, RCL, STS, ALL and EMER CANCEL keys
will continue to operate, because they are hardwired to the FWC/DMC.
Therefore, the "ALL" key can be used to scroll all SD pages and
display the desired one
(by releasing the key, when the desired SD page appears).

FLUCTUATING CAUTION

Any fluctuating caution can be deleted with the EMER CANCEL pushbutton.
When pressed, the EMER CANCEL pushbutton deletes both the aural alert,
and the caution for the remainder of the flight.
This is indicated on the STATUS page, by the "CANCELLED CAUTION" title.

The EMER CANCEL pushbutton inhibits any aural warning that is associated with a red
warning, but does not affect the warning itself.

RCL PUSHBUTTON

The RCL pushbutton allows to call up all ECAM alerts and the STATUS page
that may have been suppressed by the CLR pushbutton
or by the flight-phase-related inhibition.

Any alerts that have been inhibited by the EMER CANCEL pushbutton are displayed when the
fly crew holds the RCL pusbutton down for more than three seconds.


USE OF SUMMARIES

Applicable to: ALL

GENERAL

SUMMARIES consist of QRH procedures, and are designed to assist the flight crew to manage
applicable actions, in the event of an ELEC EMER CONFIG or a dual hydraulic failure.

In any case, ECAM actions should be applied first (actions and STATUS review).

The PNF should refer to the applicable QRH SUMMARIES, only after announcing:
"ECAM ACTIONS COMPLETED".

When a failure occurs, and after performing the ECAM actions,
the PNF should refer to the "ACTUAL LANDING DISTANCES WITH FAILURE WITHOUT REV" table
of the SUMMARIES, to determine the landing distance with failure.

For dry and wet runways, the Actual Landing Distances with failure are provided in the
SUMMARIES.

For contaminated runways, only the LDG DIST Factors are provided in the SUMMARIES.

As mentioned, the landing distance and the LDG DIST Factors provided in the SUMMARIES do
not take into account the credit of the reverse thrust.

However, if necessary, the flight crew can still
compute an ACTUAL LANDING DISTANCE WITH REV by referring to the QRH part 2.

Also, the landing distances provided in the SUMMARIES do not take into account possible
additional factor linked to the "APPR COR".
Therefore, the PNF must check in the "CRUISE" section of the SUMMARIES
whether an "APPR COR" appears in the VAPP formula.

Two different cases are possible:

‐ There is no "APPR COR", the flight crew must consider
the landing distance with failurecomputed before to divert, or not.

‐ There is an "APPR COR". In this case, the PNF should refer
to the VAPP computation method(QRH part 2) in order to determine
whether an "Additional Factor" is applicable.
The flight crew must consider the resulting landing distance
with failure to divert, or not.

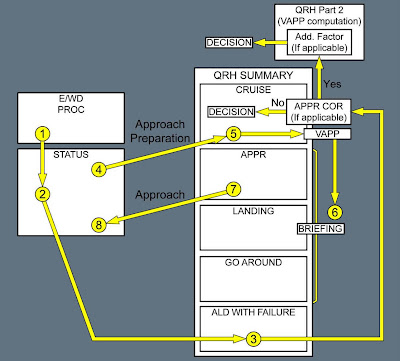

APPROACH PREPARATION

As usual, approach preparation includes a review of the ECAM STATUS.

After reviewing the STATUS, the PNF should refer
to the "CRUISE" section of the SUMMARIES,
to determine the VREF correction, and compute the VAPP.

The PNF should refer to the VAPP computation method (QRH part 2)
if "APPR COR" appears in the VAPP formula,
and uses the VREF displayed on the MCDU (with the updated destination).

The SUMMARIES provides a VREF table, in the event
that failure results in the loss of the MCDU.

The APPR, LANDING and GO-AROUND sections of the SUMMARIES should be used for the
approach briefing.

APPROACH

To perform the APPR PROC, the APPROACH section of
the SUMMARIES should be read (mainly because of the flap extension procedure,
that does not entirely appear on the ECAM).

This assumes that the recommendations, provided in this part
of the SUMMARIES are sufficient for understanding, and that
it will not be necessary for the flight crew to consult
the "LANDING WITH FLAPS (SLATS) JAMMED” paper procedure.

The PNF should then review the ECAM STATUS, and check that all the APPR PROC actions
have been completed.


sequence



AP, FD, A/THR MODE CHANGES AND REVERSIONS

INTRODUCTION

The flight crew manually engages the modes.

However, they may change automatically, depending on the:

• AP, FD, and A/THR system integration
• Logical sequence of modes
• So-called "mode reversions".

AP, FD, ATHR SYSTEM INTEGRATION

There is a direct relationship between aircraft pitch control, and engine thrust control.
This relationship is designed to manage the aircraft’s energy.

• If the AP/FD pitch mode controls a vertical trajectory (e.g. ALT, V/S, FPA, G/S):

A/THR controls speed

• If the AP/FD pitch mode controls a speed (e.g. OP CLB, OP DES):

A/THR controls thrust (THR CLB, THR IDLE)

• If no AP/FD pitch mode is engaged (i.e. AP is off and FD is off):

A/THR controls speed

Therefore, any change in the AP/FD pitch mode is associated with a change in the A/THR mode.

Note:

For this reason, the FMA displays the A/THR mode and the AP/FD
vertical mode columns next to each other.

THE LOGICAL SEQUENCE OF MODES

In climb, when the flight crew selects a climb mode, they usually define an altitude target,
and expect the aircraft to capture and track this altitude.
Therefore, when the flight crew selects a climb mode,
the next logical mode is automatically armed.
For example:

AP/FD mode capture and tracking (1)


The flight crew may also manually arm a mode in advance,
so that the AP/FD intercepts a defined trajectory.

Typically, the flight crew may arm NAV, LOC-G/S, and APPNAV-FINAL.
When the capture or tracking conditions occur, the mode will change sequentially.

AP/FD mode capture and tracking (2)


These logical mode changes occur, when the modes are armed.
They appear in blue on the FMA.

MODE REVERSIONS

GENERAL

Mode reversions are automatic mode changes that unexpectedly occur, but are designed to
ensure coherent AP, FD, and A/THR operations, in conjunction with flight crew input
(or when entering a F-PLN discontinuity).

For example, a reversion will occur, when the flight crew:

• Changes the FCU ALT target in specific conditions
• Engages a mode on one axis, that will automatically disengage the associated mode
on the other axis
Due to the unexpected nature of their occurrence, the FMA should be closely-monitored for
mode reversions.

FLIGHT CREW CHANGE OF FCU ALT TARGET ▸ ACTIVE VERTICAL MODE NOT POSSIBLE

FCU change resulting reversion to VS mode



This reversion to the V/S (FPA) mode on the current V/S target does not modify the pitch
behaviour of the aircraft.

It is the flight crew's responsibility to change it as required.


FLIGHT CREW HDG OR TRK MODE ENGAGEMENT ▸ DISENGAGEMENT OF ASSOCIATED

MODE ON THE VERTICAL AXIS

This reversion is due to the integration of the AP, FD, and A/THR with the FMS.
When the flight crew defines a F-PLN, the FMS considers this F-PLN
as a whole (lateral + vertical).
Therefore, the AP will guide the aircraft along the entire F-PLN:

• Along the LAT F-PLN (NAV – APP NAV modes)
• Along the VERT F-PLN (CLB – DES – FINAL modes).

Vertical managed modes can only be used, if the lateral managed NAV mode is used.
If the flight crew decides to divert from the lateral F-PLN,
the autopilot will no longer guide the aircraft along the vertical F-PLN.

Therefore, in climb:

Lateral mode change and vertical mode reversion



In descent:

Lateral mode change and vertical mode reversion


This reversion to V/S (FPA) mode on the current V/S target
does not modify the pitch behavior of the aircraft.
It is the flight crew’s responsibility to adapt pitch, if necessary.

THE AIRCRAFT ENTERS A F-PLN DISCONTINUITY

NAV mode is lost, when entering a F-PLN discontinuity.
On the lateral axis, the aircraft reverts to HDG (or TRK) mode.
On the vertical axis, the same reversion (as the one indicated above) occurs.

THE PF MANUALLY FLIES THE AIRCRAFT WITH THE FD ON,

AND DOES NOT FOLLOW THE FD PITCH ORDERS

If the flight crew does not follow the FD pitch orders, an A/THR mode reversion occurs.
This reversion is effective, when the A/THR is in THRUST MODE (THR IDLE, THR CLB),
and the aircraft reaches the limits of the speed envelope (VLS, VMAX):

reversion to speed mode


AP, FD, A/THR MODE CHANGES AND REVERSIONS

Applicable to: MSN 4354, 4405, 4413, 4450, 4490, 4526

INTRODUCTION

The flight crew manually engages the modes.
However, they may change automatically, depending on the:
‐ AP, FD, and A/THR system integration
‐ Logical sequence of modes
‐ So-called "mode reversions".

AP, FD, ATHR SYSTEM INTEGRATION

There is a direct relationship between aircraft pitch control, and engine thrust control.
This relationship is designed to manage the aircraft’s energy.

‐ If the AP/FD pitch mode controls a vertical trajectory (e.g. ALT, V/S, FPA, G/S):

A/THR controls speed

‐ If the AP/FD pitch mode controls a speed (e.g. OP CLB, OP DES):

A/THR controls thrust (THR CLB, THR IDLE)

‐ If no AP/FD pitch mode is engaged (i.e. AP is off and FD is off):

A/THR controls speed

Therefore, any change in the AP/FD pitch mode is associated with a change in the A/THR mode.

Note:

For this reason, the FMA displays the A/THR mode and the AP/FD vertical mode
columns next to each other.

THE LOGICAL SEQUENCE OF MODES

In climb, when the flight crew selects a climb mode, they usually define an altitude target,
and expect the aircraft to capture and track this altitude.
Therefore, when the flight crew selects a climb mode, the next logical mode is automatically armed.

For example:

AP/FD Mode Capture and Tracking (1)



The flight crew may also manually arm a mode in advance,
so that the AP/FD intercepts a defined trajectory.

Typically, the flight crew may arm NAV, LOC-G/S and F-LOC-F-G/S.
When the capture or tracking conditions occur, the mode will change sequentially.

AP/FD Mode Capture and Tracking (2)


These logical mode changes occur, when the modes are armed. They appear in blue on the FMA

MODE REVERSIONS

GENERAL

Mode reversions are automatic mode changes that unexpectedly occur, but are designed to
ensure coherent AP, FD, and A/THR operations, in conjunction with flight crew input
(or when entering a F-PLN discontinuity).

For example, a reversion will occur, when the flight crew:

‐ Changes the FCU ALT target in specific conditions
‐ Engages a mode on 01 axis, that will automatically disengage
the associated mode on the other axis
‐ Manually flies the aircraft with the FD on, but does not follow the FD orders,
which leads to the aircraft to the limits of the flight envelope.

Due to the unexpected nature of their occurrence, the FMA should be closely-monitored for
mode reversions.

FLIGHT CREW CHANGE OF FCU ALT TARGET ▸ ACTIVE VERTICAL MODE NOT POSSIBLE

FCU Change Resulting Reversion to VS Mode



This reversion to the V/S (FPA) mode on the current V/S target does not modify the pitch
behaviour of the aircraft.

It is the flight crew's responsibility to change it as required.

FLIGHT CREW HDG OR TRK MODE ENGAGEMENT ▸
DISENGAGEMENT OF ASSOCIATEDMODE ON THE VERTICAL AXIS


This reversion is due to the integration of the AP, FD, and A/THR with the FMS.
When the flight crew defines a F-PLN, the FMS considers this F-PLN as
a whole (lateral + vertical).

Therefore, the AP will guide the aircraft along the entire F-PLN:

‐ Along the LAT F-PLN (NAV – F-LOC modes)
‐ Along the VERT F-PLN (CLB – DES –F-G/S modes).

Vertical managed modes can only be used, if the lateral managed NAV mode is used.
If the flight crew decides to divert from the lateral F-PLN,
the autopilot will no longer guide the aircraft along the vertical F-PLN.

Therefore, in climb:

Lateral Mode Change and Vertical Mode Reversion


In descent:

Lateral Mode Change and Vertical Mode Reversion



This reversion to V/S (FPA) mode on the current V/S target
does not modify the pitch behaviorof the aircraft.
It is the flight crew’s responsibility to adapt pitch, if necessary.

THE AIRCRAFT ENTERS A F-PLN DISCONTINUITY

NAV mode is lost, when entering a F-PLN discontinuity.
On the lateral axis, the aircraft reverts to HDG (or TRK) mode.
On the vertical axis, the same reversion (as the one indicated above)occurs.

THE PF MANUALLY FLIES THE AIRCRAFT WITH THE FD ON,
AND DOES NOT FOLLOW THE FD PITCH ORDERS


If the flight crew does not follow the FD pitch orders, an A/THR mode reversion occurs.
This reversion is effective, when the A/THR is in THRUST MODE (THR IDLE, THR CLB),
and the aircraft reaches the limits of the speed envelope (VLS, VMAX):

Reversion to Speed Mode



A/THR in SPEED mode automatically readjusts thrust to regain the target speed. The FD bars
will disappear, because they are not being followed by the PF.

TRIPLE CLICK

The "triple click" is an aural alert. It is an attention-getter,
designed to draw the flight crew's attentionto the FMA.

The PFD FMA highlights a mode change or reversion with a white box around the new mode,
and the pulsing of its associated FD bar.

The reversions, described in the previous paragraph, are also emphasized via the triple click aural
alert.

Note:

The triple click also appears in the following, less usual, cases:

• SRS ▸ CLB (OPCLB) reversion: If, the flight crew selects a speed on the FCU
• The V/S selection is "refused" during ALT *:
The flight crew pulls the V/S knob, while in ALT*
• The V/S target is not followed, because the selected target is too high,
and leads to VMIN/VMAX.
AUTOTHRUST (A/THR)


OBJECTIVE

The A/THR computer (within the FG) interfaces directly with the engine computer,
referred to as the FADEC.

The A/THR sends to the FADEC the thrust targets that are needed to:

• Obtain and maintain a target speed, when in SPEED mode
• Obtain a specific thrust setting (e.g. CLB, IDLE), when in THRUST mode.

INTERFACE

When the A/THR is active, the thrust lever position determines the maximum thrust
that the A/THR can command in SPEED or THRUST mode.
Therefore, with A/THR active, thrust levers act as a
thrust limiter or a thrust-rating panel.

The A/THR computer does not drive back the thrust levers.
The PF sets them to a specific detent on the thrust lever range.

The A/THR system provides cues that indicate the energy of the aircraft:

• Speed, acceleration, or deceleration, obtained by the speed trend vector
• N1, and N1 command on the N1 gauge.

All these cues are in the flight crew’s direct line of vision.

In other words, the Thrust Lever Angle (TLA) should not be used
to monitor correct A/THR operation.
Neither should the thrust lever position of a conventional autothrottle,
be considered a cue because, in many hazardous situations,
the thrust lever position can be misleading
(e.g. engine failure, thrust lever jammed).

the TLA determines Max thrust for the A/THR


NORMAL OPERATIONS

The A/THR can only be active, when the thrust levers are
between IDLE and the CLB detent.
When the thrust levers are beyond the CLB detent,
thrust is controlled manually to the thrust lever Angle,
and the A/THR is armed (A/THR appears in blue on the FMA).
This means that the A/THR is ready to be re-activated,
when the flight crew sets the thrust levers back to the CLB detent
(or below).



AT TAKEOFF

The thrust levers are set either full forward to TOGA, or to the FLX detent.
Thrust is manually controlled to the TLA, and A/THR is armed.
The FMA indicates this in blue.

AFTER TAKEOFF

When the aircraft reaches THR RED ALT, the flight crew sets the
thrust levers back to the CLB detent.

This activates A/THR.

MAX CLB will, therefore, be the maximum normal thrust setting
that will be commanded by the A/THR in CLB, CRZ, DES, or APPR, as required.

THRUST LEVER(S) BELOW THE CLB DETENT

If one thrust lever is set to below the CLB detent,
the FMA triggers a LVR ASYM message, as a reminder to the flight crew
(e.g. this configuration might be required due to an engine’s high vibration level).

However, if all thrust levers are set to below the CLB detent,
with the A/THR active, then CLB or LVR CLB flashes in the first FMA column.

This is because there is no operational reason to be in such a situation,
and to permanently limit A/THR authority on all engines.
In this case, all thrust levers should either be brought back to the CLB detent,
or the A/THR should be set to OFF.

OPERATIONS WITH ONE ENGINE INOPERATIVE

The above-noted principles also apply to an one-engine inoperative situation,
except that A/THR can only be active, when thrust levers are set between IDLE and MCT.

A/THR operating technique: one engine inoperative



In case of engine failure, the thrust levers will be
in MCT detent for remainder of the flight.
This is because MCT is the maximum thrust that can usually be commanded
by the A/THR for climb or acceleration, in all flight phases
(e.g. CLB, CRZ, DES or APPR ).

TO SET AUTOTHRUST TO OFF

How to set A/THR off



1) USE OF INSTINCTIVE DISCONNECT (I/D) PUSHBUTTON

If the I/D pushbutton is pressed when the thrust levers are in CL detent,
thrust will increase to MAX CL.
This will cause an unwanted thrust increase and may destabilize the approach.

Therefore, the recommended technique for setting A/THR to off is:

‐ Return the thrust levers to approximately the current thrust setting,
by observing the TLA symbol on the thrust gauge

‐ Press the I/D pushbutton

This technique minimizes thrust discontinuity, when setting A/THR to off.

recommended technique to set A/THR to off



2) THRUST LEVERS SET TO IDLE

If thrust levers are set to IDLE, A/THR is set to off.

This technique is usually used in descent,
when the A/THR is in THR IDLE, or at landing.

During flare, with the A/THR active, the thrust levers are set to the CLB detent.

Then, when thrust reduction is required for landing,
the thrust levers should be moved rapidly and set to the IDLE stop.

This will retard thrust, and set A/THR to off.

As a reminder, the "RETARD" aural alert will sound.

In flare, this aural alert will occur at 20 ft, except in the case of autoland,
where it occurs at 10 ft.

It should be noted that, when the thrust levers are set back to IDLE and A/THR set to off:

The A/THR can be reactivated by pressing the pushbutton on the FCU, and returning the
thrust levers to the applicable detent.
The thrust levers should be immediately returned to the applicable detent,
in order to avoid flashing CLB or LVR CLB message on the first FMA column.

3) USE OF THE FCU PUSHBUTTON

Use of the FCU pushbutton is considered to be an involuntary A/THR off command
(e.g. in the case of a failure).
When pressed, thrust is frozen and remains locked at the value it had when
the flight crew pressed the A/THR pushbutton, as long as
the thrust levers remain in the CLB or MCT detent.

If thrust levers are out of detent, thrust is manually controlled and, therefore, unlocked.

A THR LK message appears in amber on the FMA.

In this case, when the flight crew moves the thrust levers out of detent, full manual control is
recovered, and the THR LK message disappears from the FMA.

This feature should not be used, unless the instinctive disconnect pushbuttons are inoperative.

ALPHA FLOOR

When the aircraft's angle-of-attack goes beyond the ALPHA FLOOR threshold, this means that the
aircraft has decelerated significantly (below ALPHA PROT speed):

A/THR activates automatically and orders TOGA thrust,
regardless of the thrust lever position.

The example below illustrates that:

• The aircraft is in descent with the thrust levers manually set to IDLE.
• The aircraft decelerates, during manual flight with the FD off, as indicated on the FMA.

Speed scale and FMA indication in a typical A Floor Case



When the speed decreases, so that the angle-of-attack reaches the ALPHA FLOOR threshold,
A/THR activates and orders TOGA thrust, despite the fact that the thrust levers are at IDLE.

When the aircraft accelerates again, the angle-of-attack drops below
the ALPHA FLOOR threshold.
TOGA thrust is maintained or locked.
This enables the flight crew to reduce thrust, as necessary.
TOGA LK appears on the FMA to indicate that TOGA thrust is locked.
The desired thrust can only be recovered by setting A/THR to off,
with the instinctive disconnect pushbutton.

ALPHA floor is available, when the flight controls are in NORMAL LAW, from liftoff
to 100 ft RA at landing.
It is inhibited in some cases of engine failure.

A/THR USE - SUMMARY

Use of A/THR is recommended during the entire flight. It may be used in most failures cases,
including:
• Engine failure, even during autoland
• Abnormal configurations


A/THR should be monitored via the:

• FMA – SPEED / SPEED TREND on the PFD
• N1/N1 command (EPR) on the ECAM E/WD.




















MECHANICAL BACKUP

Applicable to: ALL
The purpose of the mechanical backup is to achieve all safety objectives
in MMEL dispatch condition:

To manage a temporary and total electrical loss,
the temporary loss of five fly-by-wire computers,
the loss of both elevators,
or the total loss of ailerons and spoilers.
It must be noted that it is very unlikely that
the mechanical backup will be used, due to the
fly-by-wire architecture. For example, in case of
electrical emergency configuration, or an all-engine
flameout, alternate law remains available.
In the unlikely event of such a failure,
mechanical backup enables the PF to safely stabilize the
aircraft, using the rudder and manual pitch trim,
while reconfiguring the systems

In such cases, the objective is not to fly the aircraft accurately,
but to maintain the aircraft attitude safe and stabilized,
in order to allow the restoration of lost systems.
The pitch trim wheel is used to control pitch.
Any action on the pitch trim wheel should be applied
smoothly, because the THS effect is significant due to its large size.
The rudder provides lateral control, and induces
a significant roll with a slight delay.
The PF should apply some rudder to turn, and wait for the aircraft reaction.
To stabilize and level the wings,
anticipate by releasing the rudder pedals.
A red “MAN PITCH TRIM ONLY” message appears on the PFD
to immediately inform the PF that the
mechanical backup is being used.

back-up indication on PFD


ABNORMAL ATTITUDES

Applicable to: ALL

If the aircraft is, for any reason, far outside
the normal flight envelope and reaches an abnormal
attitude, the normal controls are modified
and provide the PF with maximum efficiency in regaining
normal attitudes.
(An example of a typical reason for being far outside the
normal flight envelope would be the avoidance of a mid-air collision).

The so-called "abnormal attitude" law is :

• Pitch alternate with load factor protection (without autotrim)
• Lateral direct law with yaw alternate

These laws trigger, when extreme values are reached:

• Pitch (50 ° up, 30 ° down)
• Bank (125 °)
• AOA (30 °, -10 °)
• Speed (440 kt, 60 kt)
• Mach (0.96, 0.1).

It is very unlikely that the aircraft will reach these attitudes,
because fly-by-wire provides protection to
ensure rapid reaction far in advance.
This will minimize the effect and potential
for such aerodynamic upsets.
The effectiveness of fly-by-wire architecture,
and the existence of control laws, eliminate the need for
upset recovery maneuvers to be trained on protected Airbus aircraft.

SIDESTICK AND TAKEOVER P/B

Applicable to: ALL

When the Pilot Flying (PF) makes an input on the sidestick,
an order (an electrical signal) is sent to the fly-by-wire computer.
If the Pilot Not Flying (PNF) also acts on the stick,
then both signals/orders are added.

Therefore, as on any other aircraft type,
PF and PNF must not act on their sidesticks at the same time.
If the PNF (or Instructor) needs to take over,
the PNF must press the sidestick takeover pushbutton,
and announce: "I have control".
If a flight crewmember falls on a sidestick, or a mechanical failure leads
to a jammed stick (there is no associate ECAM caution),
the "failed" sidestick order is added to the "non failed" sidestick order.

In this case, the other not affected flight crewmember
must press the sidestick takeover pushbutton for at least 40 s,
in order to deactivate the "failed" sidestick.
A pilot can at any time reactivate a deactivated stick
by momentarily pressing the takeover pushbutton on either stick.

In case of a "SIDE STICK FAULT" ECAM warning, due to an electrical failure,
the affected sidestick order (sent to the computer) is forced to zero.
This automatically deactivates the affected sidestick.
This explains why there is no procedure associated with this warning.

AUTOPILOT/FLIGHT DIRECTOR

OBJECTIVE

The Auto Pilot (AP) and Flight Director (FD) assist the flight crew
to fly the aircraft within the normal flight envelope, in order to:

• Optimize performance in the takeoff, go-around, climb, or descent phases
• Follow ATC clearances (lateral or vertical)
• Repeatedly fly and land the aircraft with very high accuracy
in CAT II and CAT III conditions.

To achieve these objectives:

• The AP takes over routine tasks. This gives the Pilot Flying (PF)
the necessary time and resources to assess the overall operational situation.
• The FD provides adequate attitude or flight path orders, and enables the PF
to accurately fly the aircraft manually.

MANAGED AND SELECTED MODES

The choice of mode is a strategic decision that is taken by the PF.


Managed modes require:

• Good FMS navigation accuracy (or GPS PRIMARY)
• An appropriate ACTIVE F-PLN
(i.e. the intended lateral and vertical trajectory is entered, and
the sequencing of the F-PLN is monitored).


MAIN INTERFACES WITH THE AP/FD



*The DIR TO function is an exception to this rule.

OPERATIONAL RECOMMENDATION:

With the FMS, anticipate flight plan updates by preparing:

• EN ROUTE DIVERSIONS
• DIVERSION TO ALTN
• CIRCLING
• LATE CHANGE OF RWY in the SEC F-PLN.

This enables the MCDU to be used for short-term actions.

TASKSHARING AND COMMUNICATIONS

The FCU and MCDU must be used, in accordance with the rules outlined below,
in order to ensure:

• Safe operation (correct entries made)
• Effective inter-pilot communication (knowing each other's intentions)
• Comfortable operations (use "available hands", as appropriate)


AP/FD MONITORING

The FMA indicates the status of the AP, FD, and A/THR,
and their corresponding operating modes.

The PF must monitor the FMA, and announce any FMA changes.

The flight crew uses the FCU or MCDU to give orders to the AP/FD.

The aircraft is expected to fly in accordance with these orders.

The main concern for the flight crew should be:

WHAT IS THE AIRCRAFT EXPECTED TO FLY NOW ?
WHAT IS THE AIRCRAFT EXPECTED TO FLY NEXT ?

If the aircraft does not fly as expected:


‐ Or, disengage the AP, and fly the aircraft manually.

AUTOPILOT (AP) OPERATION

The AP can be engaged within the normal flight envelope,
5 s after liftoff and at least 100 ft.
It automatically disengages, when the aircraft flies
significantly outside the normal flight envelope limits.
The AP cannot be engaged, when the aircraft is outside the flight envelope.
Flight control laws are designed to assist the flight crew to
return within the flight envelope, in accordance with the selected strategy.

The AP may be used:

• For autoland: Down to the aircraft landing rollout,
in accordance with the limitations indicated in the FCOM

• For other approaches, down to:

‐ The MDA for straight in Non Precision Approach
‐ The DA for straight in LNAV/VNAV approach
‐ MDA - 100 ft for circling approach
‐ 160 ft for ILS approach with CAT1 displayed on FMA
‐ 500 ft for all others phases.

It may also be used, in case of:

• Engine failure: Without any restriction,
within the demonstrated limits, including autoland
• Abnormal configuration (e.g. slats/flaps failure):
Down to 500 ft AGL. Extra vigilance is required in these configurations.
The flight crew must be ready to take over, if the aircraft
deviates from its intended, safe flight path.

The sidestick's instinctive disconnect pushbutton should be used to disengage the AP.
Instinctive override action on the sidestick also disengages the AP.
It consists in pushing or pulling the sidestick beyond a given threshold.

The flight crew should use the FCU AP pushbutton when they
perform an AP switching (changeover from AP1(2) to AP2(1)).

RECOMMENDED PRACTICE FOR AUTOPILOT ENGAGEMENT

Before engaging the Autopilot (AP), the Flight Crew should:

‐ Fly the aircraft on the intended path
‐ Check on FMA that Flight Director (FD) is engaged
with the appropriate guidance modes for the intended flight path;
if not, select FD ON, and the appropriate guidance mode(s) as required
‐ Center the FD bars with the aircraft symbol on the PFD

Note:

Engaging the AP while large orders are required to achieve the intended flight path
may result in the AP overshooting the intended vertical and/or lateral target.

This situation may surprise the pilot due to the resulting
large pitch / roll changes and thrust variations.

USE OF THE FD WITHOUT THE AP

When manually flying the aircraft with the FDs on,
the FD bars or the FPD symbol provide lateral and vertical orders,
in accordance with the active modes that the flight crew selects.

Therefore:

‐ Fly with a centered FD or FPD
‐ If not using FD orders, turn off the FD.

It is strongly recommended to turn off both FDs,
to ensure that the A/THR is in SPEED mode, if
the A/THR is active.
